Blue Cat Audio PatchWork

Blue Cat's PatchWork is a universal plug-ins patchbay that can host up to 64 VST plug-ins into any Digital Audio Workstation (DAW) in one instance.

It is possible to chain effects in series or create up to 8 parallel chains that can be activated independently. This lets you create your favorite effects or instruments configurations within the plug-in, without the need for multiple busses. These configurations can be saved as presets and recalled instantly, or shared with multiple DAWs, using any plug-in format (full list below).

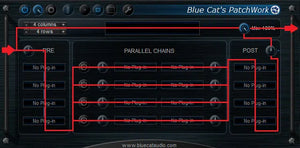

Despite the name, you can forget about wires or cables: configuring plug-ins routing is as simple as adding or removing a row or a column in the rack's matrix.

For each plug-in slot, latency compensation, presets management, undo/redo integration, and individual plug-in bypass are included for optimal operation. The plug-in also stores the position of the window for each plug-in so that the layout is restored with your session or saved with presets.

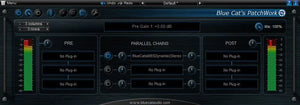

The plug-in is available as an audio effect or a virtual instrument so that it can be inserted on any type of track, with up to 8 audio channels.

Input and output level meters are also included to monitor the signal that is dispatched to inserted plug-ins.

Typical applications: Plug-ins host, custom channel strip, parallel processing, effects chainer, virtual bussing, virtual instrument, share bus and plug-ins configurations between DAWs, VST to AAX, Audio Unit, RTAS or DirectX plug-in adapter, effect chains A/B comparison.

• Configurable VST plug-ins rack: host up to 64 third party plug-ins or instruments in series or parallel.
• Available as an effect or virtual instrument.
• Build your own effects chains: up to 8 "pre" and "post" plug-ins slots to chain plug-ins in series.

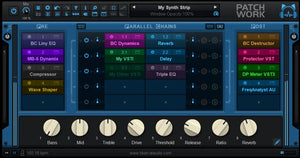

• Parallel processing made easy: up to 8 parallel plug-ins chains.
• Host up to 8 virtual instruments in parallel and mix them within the plug-in.
• Global Dry/Wet control ("Mix").
• Copy and paste plug-ins with their settings between slots.
• Recall complex processing setups and plug-ins layouts with one click and share them between your DAWs.
• Input and output levels monitoring.
• Plug-ins Latency compensation.
• Integrated undo/redo.
• Fully configurable user interface, with multiple sizes.
